Integration Services Package - DimStudentTermLoad

Property	Value
Name	DimStudentTermLoad
Description	This package will load any change to the DimStudentTerm dimension. The first step in this package is to truncate all the working tables needed to track new and updated records. The next step will load the data into a staged table in DWOperations. The data will be checked if there are any duplicate records and these will be flagged. The data in the Staged Table will be compared against that in the dimension and will be inserted or updated as required. If any duplicate records were found, a notification e-mail will be send to the appropriate staff
Checkpoint File Name
Checkpoint Usage	Never
Check Signature On Load	True
Creation Date	Tuesday, May 08, 2012 4:11 PM
Creator Computer Name	ipeterson
Creator Name	ipeterso\hetgroup
Debug Mode	False
Delay Validation	False
Disable	False
Disable Event Handlers	False
Enable Configurations	True
Encrypt Checkpoints	False
Fail Package On Failure	False
Fail Parent On Failure	False
Forced Execution Value	0
Force Execution Value	None
Description	False
ID	1c29f8e9-7a10-49a7-8278-4b3f1a0d20ce
Interactive Mode	False
Is Default Locale ID	False
Isolation Level	Serializable
Locale ID	1033
Logging Mode	Enabled
Max Concurrent Executables	-1
Maximum Error Count	1
Offline Mode	False
Package Type	DTSDesigner100
Protection Level	DontSaveSensitive
Save Checkpoints	False
Suppress Configuration Warnings	False
Suspend Required	False
Transaction Option	Supported
Update Objects	False
Version Build	200
Version Comments
Version Guid	41a2a853-bd55-484f-90ce-785788dece97
Version Major	1
Version Minor	0

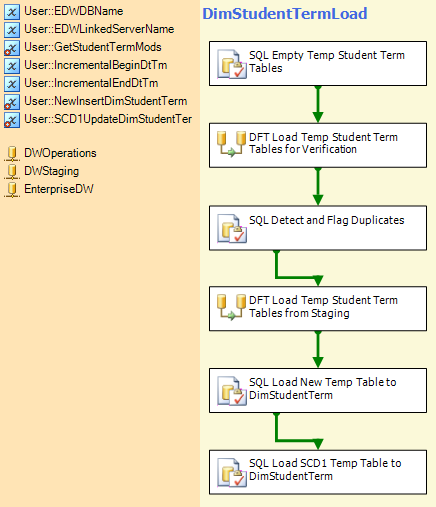

Name	Type	Description
DFT Load Temp Student Term Tables for Verification	Data Flow Task	Data Flow Task
DFT Load Temp Student Term Tables from Staging	Data Flow Task	Data Flow Task
SQL Detect and Flag Duplicates	Task	Execute SQL Task
SQL Empty Temp Student Term Tables	Task	Execute SQL Task
SQL Load New Temp Table to DimStudentTerm	Task	Execute SQL Task
SQL Load SCD1 Temp Table to DimStudentTerm	Task	Execute SQL Task

Name	Description
DWOperations
DWStaging
EnterpriseDW

Name	Description

Name	Value	Expression	Description
User::EDWDBName	EnterpriseDW		Configuration setting in SSIS_Configurations that specifies the name of the Enterprise Data Warehouse.
User::EDWLinkedServerName	N/A		If the Enterprise Data Warehouse resides on a different server from the DWStaging and DWoperations databases, a linked server must be defined and the name populated into the Var_EDWLinkedServername. If it resides on the same server, this setting must be set to ?N/A?. This is a configuration setting from SSIS_Configurations.
User::GetStudentTermMods	exec usp_DimStudentTerm_Select 'Jan 1 1900 12:00AM' , 'Mar 4 2016 10:33AM'	"exec usp_DimStudentTerm_Select '" + @[User::IncrementalBeginDtTm] + "' , '" + @[User::IncrementalEndDtTm] + "'"	This variable contains the execution string for the Stored Procedure that will retrieve the data from the source system.
User::IncrementalBeginDtTm	Jan 1 1900 12:00AM		The IncrementalBeginDtTm setting will contain the start date and time for which updates will be extracted. This is a configuration setting from SSIS_Configurations that are set in the Control Package.
User::IncrementalEndDtTm	Mar 4 2016 10:33AM		The IncrementalEndDtTm setting will contain the End Date and Time for which updates will be extracted. These values will be compared against the RowUpdatedOn column on the tables in the DWStaging database to determine which rows to extract and load into the Enterprise Data Warehouse.
User::NewInsertDimStudentTerm	/* SQL INSERT into DimStudentTerm from New Temp Table */ INSERT INTO [EnterpriseDW].[dbo].[DimStudentTerm] ( StudentTermAK ,StudentId ,Term ,TermTitle ,ResidencyCode ,Residency ,ProgramCode ,Program ,ProgramAdmitStatus ,AcademicStatusCode ,AcademicStatus ,BasisOfAdmissionCode ,BasisOfAdmission ,EnrollmentStatusCode ,EnrollmentStatus ,AgeAtTerm ,AgeRangeAtTerm ,AwardTypeCode ,AwardType ,SdbAwardTypeCode ,Advised ,AdvisementStatusCode ,AdvisementStatus ,AdvisementMandatory ,DateLastAdvised ,AdvisementProgramCode ,AdvisementProgram ,AdvisementAwardTypeCode ,AdvisementAwardType ,AdvisementAdvisorId ,AdvisementAdvisor ,TransferMajorAdvisementCode ,TransferMajorAdvisement ,TransferInstitutionAdvisementId ,TransferInstitutionAdvisement ,RowIsCurrent ,RowStartDate ,RowEndDate ) SELECT StudentTermAK ,StudentId ,Term ,TermTitle ,ResidencyCode ,Residency ,ProgramCode ,Program ,ProgramAdmitStatus ,AcademicStatusCode ,AcademicStatus ,BasisOfAdmissionCode ,BasisOfAdmission ,EnrollmentStatusCode ,EnrollmentStatus ,AgeAtTerm ,AgeRangeAtTerm ,AwardTypeCode ,AwardType ,SdbAwardTypeCode ,Advised ,AdvisementStatusCode ,AdvisementStatus ,AdvisementMandatory ,DateLastAdvised ,AdvisementProgramCode ,AdvisementProgram ,AdvisementAwardTypeCode ,AdvisementAwardType ,AdvisementAdvisorId ,AdvisementAdvisor ,TransferMajorAdvisementCode ,TransferMajorAdvisement ,TransferInstitutionAdvisementId ,TransferInstitutionAdvisement ,RowIsCurrent ,RowStartDate ,RowEndDate FROM [dbo].[Staged_dbo_DimStudentTerm__New]	" /* SQL INSERT into DimStudentTerm from New Temp Table */ INSERT INTO " + (@[User::EDWLinkedServerName] == "N/A" ? "" : "[" + @[User::EDWLinkedServerName]+"]." ) + "["+ @[User::EDWDBName] + "].[dbo].[DimStudentTerm] ( StudentTermAK ,StudentId ,Term ,TermTitle ,ResidencyCode ,Residency ,ProgramCode ,Program ,ProgramAdmitStatus ,AcademicStatusCode ,AcademicStatus ,BasisOfAdmissionCode ,BasisOfAdmission ,EnrollmentStatusCode ,EnrollmentStatus ,AgeAtTerm ,AgeRangeAtTerm ,AwardTypeCode ,AwardType ,SdbAwardTypeCode ,Advised ,AdvisementStatusCode ,AdvisementStatus ,AdvisementMandatory ,DateLastAdvised ,AdvisementProgramCode ,AdvisementProgram ,AdvisementAwardTypeCode ,AdvisementAwardType ,AdvisementAdvisorId ,AdvisementAdvisor ,TransferMajorAdvisementCode ,TransferMajorAdvisement ,TransferInstitutionAdvisementId ,TransferInstitutionAdvisement ,RowIsCurrent ,RowStartDate ,RowEndDate	This variable contains the string that will be used to insert any new rows into the DimStudentTerm table.
User::SCD1UpdateDimStudentTerm	/* Sample Update Type1 to Dim */ UPDATE [EnterpriseDW].[dbo].[DimStudentTerm] SET StudentTermAK = SCD1.StudentTermAK ,StudentId = SCD1.StudentId ,Term = SCD1.Term ,TermTitle = SCD1.TermTitle ,ResidencyCode = SCD1.ResidencyCode ,Residency = SCD1.Residency ,ProgramCode = SCD1.ProgramCode ,Program = SCD1.Program ,ProgramAdmitStatus = SCD1.ProgramAdmitStatus ,AcademicStatusCode = SCD1.AcademicStatusCode ,AcademicStatus = SCD1.AcademicStatus ,BasisOfAdmissionCode = SCD1.BasisOfAdmissionCode ,BasisOfAdmission = SCD1.BasisOfAdmission ,EnrollmentStatusCode = SCD1.EnrollmentStatusCode ,EnrollmentStatus = SCD1.EnrollmentStatus ,AgeAtTerm = SCD1.AgeAtTerm ,AgeRangeAtTerm = SCD1.AgeRangeAtTerm ,AwardTypeCode = SCD1.AwardTypeCode ,AwardType = SCD1.AwardType ,SdbAwardTypeCode = SCD1.SdbAwardTypeCode ,Advised = SCD1.Advised ,AdvisementStatusCode = SCD1.AdvisementStatusCode ,AdvisementStatus = SCD1.AdvisementStatus ,AdvisementMandatory = SCD1.AdvisementMandatory ,DateLastAdvised = SCD1.DateLastAdvised ,AdvisementProgramCode = SCD1.AdvisementProgramCode ,AdvisementProgram = SCD1.AdvisementProgram ,AdvisementAwardTypeCode = SCD1.AdvisementAwardTypeCode ,AdvisementAwardType = SCD1.AdvisementAwardType ,AdvisementAdvisorId = SCD1.AdvisementAdvisorId ,AdvisementAdvisor = SCD1.AdvisementAdvisor ,TransferMajorAdvisementCode = SCD1.TransferMajorAdvisementCode ,TransferMajorAdvisement = SCD1.TransferMajorAdvisement ,TransferInstitutionAdvisementId = SCD1.TransferInstitutionAdvisementId ,TransferInstitutionAdvisement = SCD1.TransferInstitutionAdvisement FROM [EnterpriseDW].[dbo].[DimStudentTerm] AS [DIM] INNER JOIN [dbo].[Staged_dbo_DimStudentTerm__Type1Update] AS SCD1 ON Dim.StudentTermAK = SCD1.StudentTermAK	" /* Sample Update Type1 to Dim */ UPDATE " + (@[User::EDWLinkedServerName] == "N/A" ? "" : "[" + @[User::EDWLinkedServerName]+"]." ) + "["+ @[User::EDWDBName] + "].[dbo].[DimStudentTerm] SET StudentTermAK = SCD1.StudentTermAK ,StudentId = SCD1.StudentId ,Term = SCD1.Term ,TermTitle = SCD1.TermTitle ,ResidencyCode = SCD1.ResidencyCode ,Residency = SCD1.Residency ,ProgramCode = SCD1.ProgramCode ,Program = SCD1.Program ,ProgramAdmitStatus = SCD1.ProgramAdmitStatus ,AcademicStatusCode = SCD1.AcademicStatusCode ,AcademicStatus = SCD1.AcademicStatus ,BasisOfAdmissionCode = SCD1.BasisOfAdmissionCode ,BasisOfAdmission = SCD1.BasisOfAdmission ,EnrollmentStatusCode = SCD1.EnrollmentStatusCode ,EnrollmentStatus = SCD1.EnrollmentStatus ,AgeAtTerm = SCD1.AgeAtTerm ,AgeRangeAtTerm = SCD1.AgeRangeAtTerm ,AwardTypeCode = SCD1.A	The SQL string that will update any changed rows in the DimStudentTerm dimension.
