Integration Services Package - DimStudentSuccessCohortLoad

Property	Value
Name	DimStudentSuccessCohortLoad
Description	This package will load any change to the DimStudentTerm dimension. The first step in this package is to truncate all the working tables needed to track new and updated records. The next step will load the data into a staged table in DWOperations. The data will be checked if there are any duplicate records and these will be flagged. The data in the Staged Table will be compared against that in the dimension and will be inserted or updated as required. If any duplicate records were found, a notification e-mail will be send to the appropriate staff
Checkpoint File Name
Checkpoint Usage	Never
Check Signature On Load	True
Creation Date	Tuesday, May 08, 2012 4:11 PM
Creator Computer Name	ipeterson
Creator Name	ipeterso\hetgroup
Debug Mode	False
Delay Validation	False
Disable	False
Disable Event Handlers	False
Enable Configurations	True
Encrypt Checkpoints	False
Fail Package On Failure	False
Fail Parent On Failure	False
Forced Execution Value	0
Force Execution Value	None
Description	False
ID	3cf8927f-8506-46e3-ae53-2fd33da6a2e7
Interactive Mode	False
Is Default Locale ID	False
Isolation Level	Serializable
Locale ID	1033
Logging Mode	Enabled
Max Concurrent Executables	-1
Maximum Error Count	1
Offline Mode	False
Package Type	DTSDesigner100
Protection Level	DontSaveSensitive
Save Checkpoints	False
Suppress Configuration Warnings	False
Suspend Required	False
Transaction Option	Supported
Update Objects	False
Version Build	254
Version Comments
Version Guid	11817569-1ac2-43ea-ab3b-1310045149ff
Version Major	1
Version Minor	0

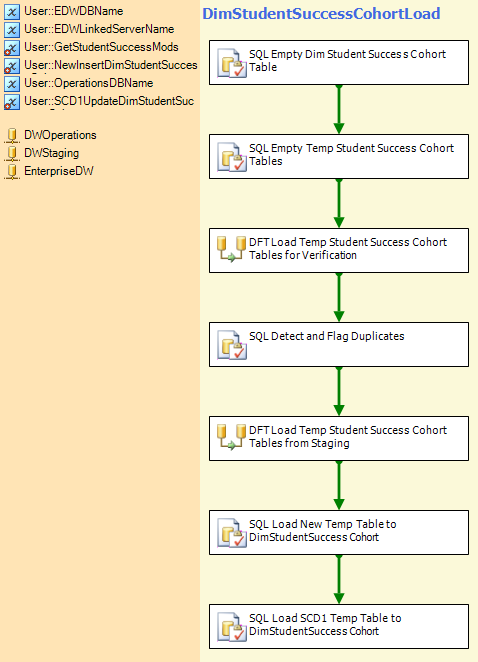

Name	Type	Description
DFT Load Temp Student Success Cohort Tables for Verification	Data Flow Task	Data Flow Task
DFT Load Temp Student Success Cohort Tables from Staging	Data Flow Task	Data Flow Task
SQL Detect and Flag Duplicates	Task	Execute SQL Task
SQL Empty Dim Student Success Cohort Table	Task	Execute SQL Task
SQL Empty Temp Student Success Cohort Tables	Task	Execute SQL Task
SQL Load New Temp Table to DimStudentSuccessCohort	Task	Execute SQL Task
SQL Load SCD1 Temp Table to DimStudentSuccessCohort	Task	Execute SQL Task

Name	Description
DWOperations
DWStaging
EnterpriseDW

Name	Description

Name	Value	Expression	Description
User::EDWDBName	EnterpriseDW		Configuration setting in SSIS_Configurations that specifies the name of the Enterprise Data Warehouse.
User::EDWLinkedServerName	N/A		If the Enterprise Data Warehouse resides on a different server from the DWStaging and DWoperations databases, a linked server must be defined and the name populated into the Var_EDWLinkedServername. If it resides on the same server, this setting must be set to ?N/A?. This is a configuration setting from SSIS_Configurations.
User::GetStudentSuccessMods	exec usp_DimStudentSuccessCohort_Select	"exec usp_DimStudentSuccessCohort_Select"	This variable contains the execution string for the Stored Procedure that will retrieve the data from the source system.
User::NewInsertDimStudentSuccessCohort	/* SQL INSERT into DimStudentSuccessCohort from New Temp Table */ INSERT INTO [EnterpriseDW].[dbo].[DimStudentSuccessCohort] ( StudentSuccessCohortAK ,StudentId ,CohortTerm ,CohortTermTitle ,FirstYearTerm ,LastTermCaptured ,LastTermCapturedTitle ,ProgramCode ,Program ,ProgramAdmitStatus ,AwardTypeCode ,AwardType ,InitialPrepStatus ,FirstTerm_FT_PT ,RowIsCurrent ,RowStartDate ,RowEndDate ) SELECT StudentSuccessCohortAK ,StudentId ,CohortTerm ,CohortTermTitle ,FirstYearTerm ,LastTermCaptured ,LastTermCapturedTitle ,ProgramCode ,Program ,ProgramAdmitStatus ,AwardTypeCode ,AwardType ,InitialPrepStatus ,FirstTerm_FT_PT ,RowIsCurrent ,RowStartDate ,RowEndDate FROM Staged_dbo_DimStudentSuccessCohort__New	" /* SQL INSERT into DimStudentSuccessCohort from New Temp Table */ INSERT INTO " + (@[User::EDWLinkedServerName] == "N/A" ? "" : "[" + @[User::EDWLinkedServerName]+"]." ) + "["+ @[User::EDWDBName] + "].[dbo].[DimStudentSuccessCohort] ( StudentSuccessCohortAK ,StudentId ,CohortTerm ,CohortTermTitle ,FirstYearTerm ,LastTermCaptured ,LastTermCapturedTitle ,ProgramCode ,Program ,ProgramAdmitStatus ,AwardTypeCode ,AwardType ,InitialPrepStatus ,FirstTerm_FT_PT ,RowIsCurrent ,RowStartDate ,RowEndDate ) SELECT StudentSuccessCohortAK ,StudentId ,CohortTerm ,CohortTermTitle ,FirstYearTerm ,LastTermCaptured ,LastTermCapturedTitle ,ProgramCode ,Program ,ProgramAdmitStatus ,AwardTypeCode ,AwardType ,InitialPrepStatus ,FirstTerm_FT_PT ,RowIsCurrent ,RowStartDate ,RowEndDate FROM Staged_dbo_DimStudentSuccessCohort__New "	This variable contains the string that will be used to insert any new rows into the DimStudentTerm table.
User::OperationsDBName	DWOperations_Maintenance		Configuration setting in SSIS_Configurations that specifies the name of the Operations Database.
User::SCD1UpdateDimStudentSuccessCohort	/* Sample Update Type1 to Dim */ UPDATE [EnterpriseDW].[dbo].[DimStudentSuccessCohort] SET StudentSuccessCohortAK = SCD1.StudentSuccessCohortAK, StudentId = SCD1.StudentId, CohortTerm = SCD1.CohortTerm, CohortTermTitle = SCD1.CohortTermTitle, FirstYearTerm = SCD1.FirstYearTerm, LastTermCaptured = SCD1.LastTermCaptured, LastTermCapturedTitle = SCD1.LastTermCapturedTitle, ProgramCode = SCD1.ProgramCode, Program = SCD1.Program, ProgramAdmitStatus = SCD1.ProgramAdmitStatus, AwardTypeCode = SCD1.AwardTypeCode, AwardType = SCD1.AwardType, InitialPrepStatus = SCD1.InitialPrepStatus, FirstTerm_FT_PT = SCD1.FirstTerm_FT_PT FROM [EnterpriseDW].[dbo].[DimStudentSuccessCohort] AS [DIM] INNER JOIN [dbo].[Staged_dbo_DimStudentSuccessCohort__Type1Update] AS SCD1 ON Dim.StudentSuccessCohortAK = SCD1.StudentSuccessCohortAK	" /* Sample Update Type1 to Dim */ UPDATE " + (@[User::EDWLinkedServerName] == "N/A" ? "" : "[" + @[User::EDWLinkedServerName]+"]." ) + "["+ @[User::EDWDBName] + "].[dbo].[DimStudentSuccessCohort] SET StudentSuccessCohortAK = SCD1.StudentSuccessCohortAK, StudentId = SCD1.StudentId, CohortTerm = SCD1.CohortTerm, CohortTermTitle = SCD1.CohortTermTitle, FirstYearTerm = SCD1.FirstYearTerm, LastTermCaptured = SCD1.LastTermCaptured, LastTermCapturedTitle = SCD1.LastTermCapturedTitle, ProgramCode = SCD1.ProgramCode, Program = SCD1.Program, ProgramAdmitStatus = SCD1.ProgramAdmitStatus, AwardTypeCode = SCD1.AwardTypeCode, AwardType = SCD1.AwardType, InitialPrepStatus = SCD1.InitialPrepStatus, FirstTerm_FT_PT = SCD1.FirstTerm_FT_PT FROM " + (@[User::EDWLinkedServerName] == "N/A" ? "" : "[" + @[User::EDWLinkedServerName]+"]." ) + "["+ @[User::EDWDBName] + "].[dbo].[DimStudentSuccessCohort] AS [DIM] INNER JOIN [dbo].[Staged_dbo_DimStudentSuccessCohort__Type1Update] AS SCD1 ON Dim.Stu	The SQL string that will update any changed rows in the DimStudentTerm dimension.
